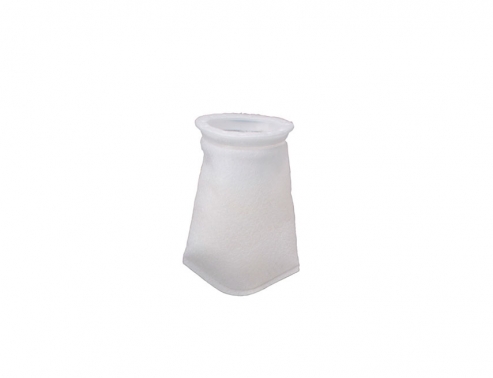

PENTAIR FILTER BAGS BP, BPHE & BN Series

Model : BP, BPHE & BN Series

BP, BPHE, and BN Series filter bags feature a thermally-welded design that delivers consistent filtration efficiency. Designed to fit BPHE-410 and BPHE-420 housings, these filter bags allow faster change-outs, improved productivity, and reliable performance across a wide range of liquid filtration applications.

APPLICATIONS

Ice Machines
Restaurants
Coffee Shops / Cafés
Hotels & Hospitality
Offices & Commercial Buildings
Drinking Water Stations
Schools & Educational Institutions

FEATURES / BENEFITS

Thermally-welded construction for strength and reliability
Consistent filtration efficiency
Fast bag change-outs reduce downtime
Compatible with acids, alkalis, oils, and organic solvents
Maximum operating temperature up to 200°F (93.3°C)

SPECIFICATIONS

Bag Sizes:
- 4" × 8.625"
- 4" × 18"
Filter Media:
- Polypropylene felt (BP)
- Polypropylene microfibers (BPHE)
- Nylon monofilament mesh (BN)
Micron Ratings:
- BP: 1–200 µ
- BPHE: 1–100 µ
- BN: 50–800 µ
Maximum Operating Temperature: 200°F (93.3°C)

DOWNLOAD

4003015-industrial-bseries-rev-d-de14.pdf

191 KB
Download
